Stainless Steel A2 Large Flange Rivet - 16mm
Product Code: A2XLF4810
Min Grip Range (mm): 4
Max Grip Range (mm): 6
Shear N: 4500
Tensile N: 6000
Body Mat: Stainless Steel A2
Mandrel Mat: Stainless Steel A2
Hole: 4.9mm

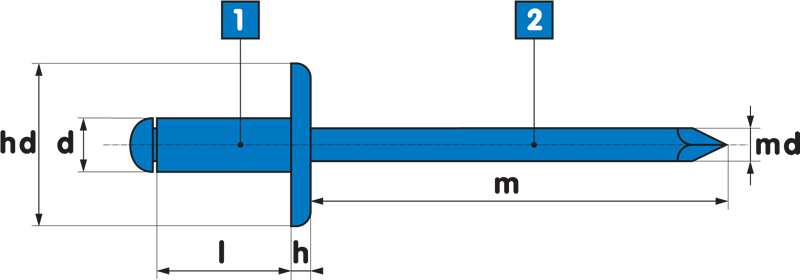

hd: 16.0 + 0.5/-1.0mm
d: 4.8 + 0.08/-0.15mm
l: 10mm
h: 1.8 +/- 0.30mm
m: 27mm
md: 2.9mm
